Position:Home > Products > Pressure Tank

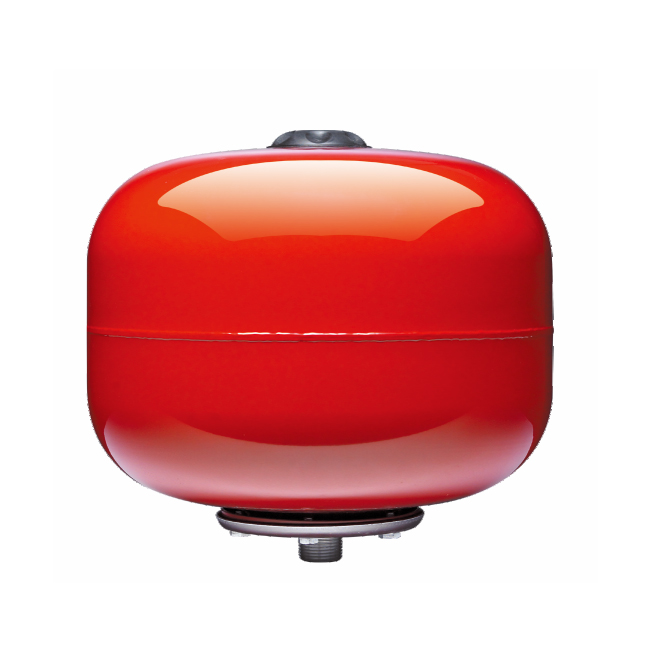

FT Pressure Tank
Specification
MAX. Work pressure:3.5bar
Working temperature
Epdm: -10℃/ 99℃
Natural rubber:0℃/77℃
Precharge:1.5Bar

详情

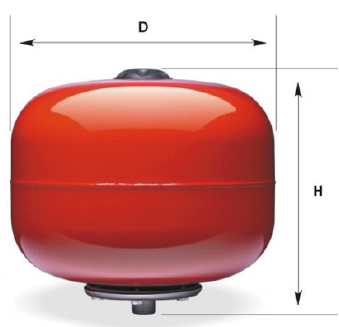

Model MAX.Pressure
|(bar)
Diameter
(mm)
Height
(mm)
Connector Precharge
 Pressure(bar)
Packing
SF-24L 6,8 350 320 1" 1.5 0.03945
SF-25L 6,8 360 360 1" 1.5 0.05062
