Position：Home > Products > Pressure Controller

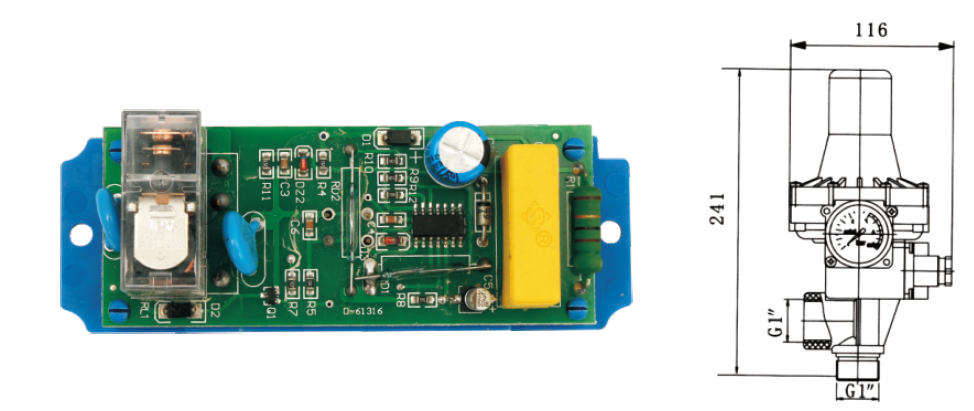

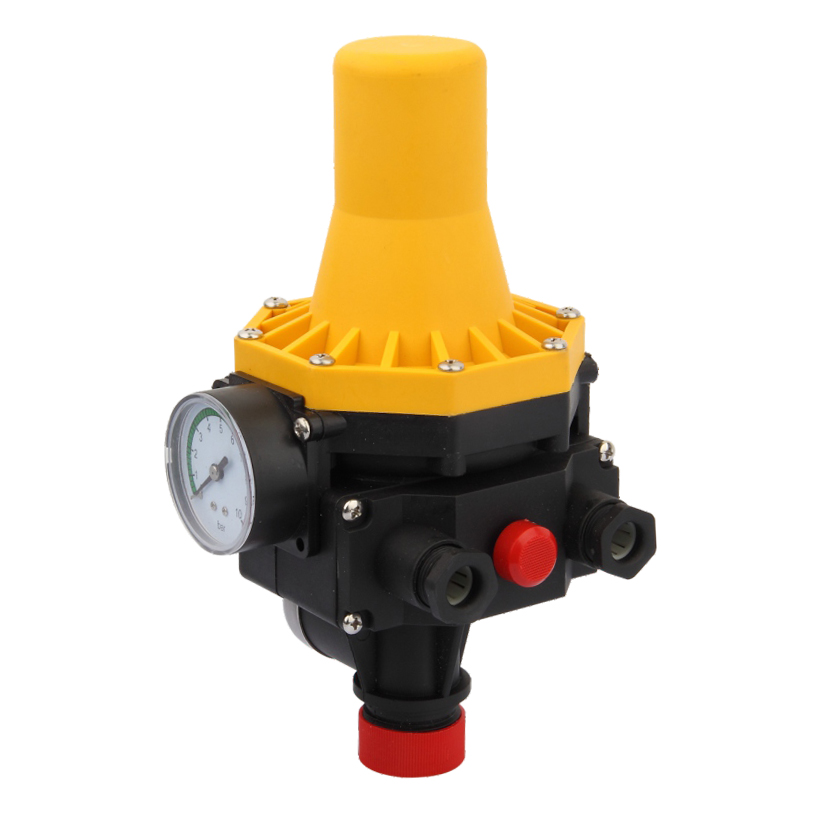

EPC-12
Singel voltage input:220V-240V 110V-120V
Frequency:50/60HZ
Max.current:10A
Max.power:1.1 KW, 1.5KW
Starting pressure setting:1.2bar, 1.5bar, 2.2bar
Max.working pressure:10bar
Connection thread:R1
Protection rating:IP65
Flow at dry running:30-60L/h
Max. working temperature:60℃
Wiring requirement：Cable diameter 7.5-9mm
Approval:
